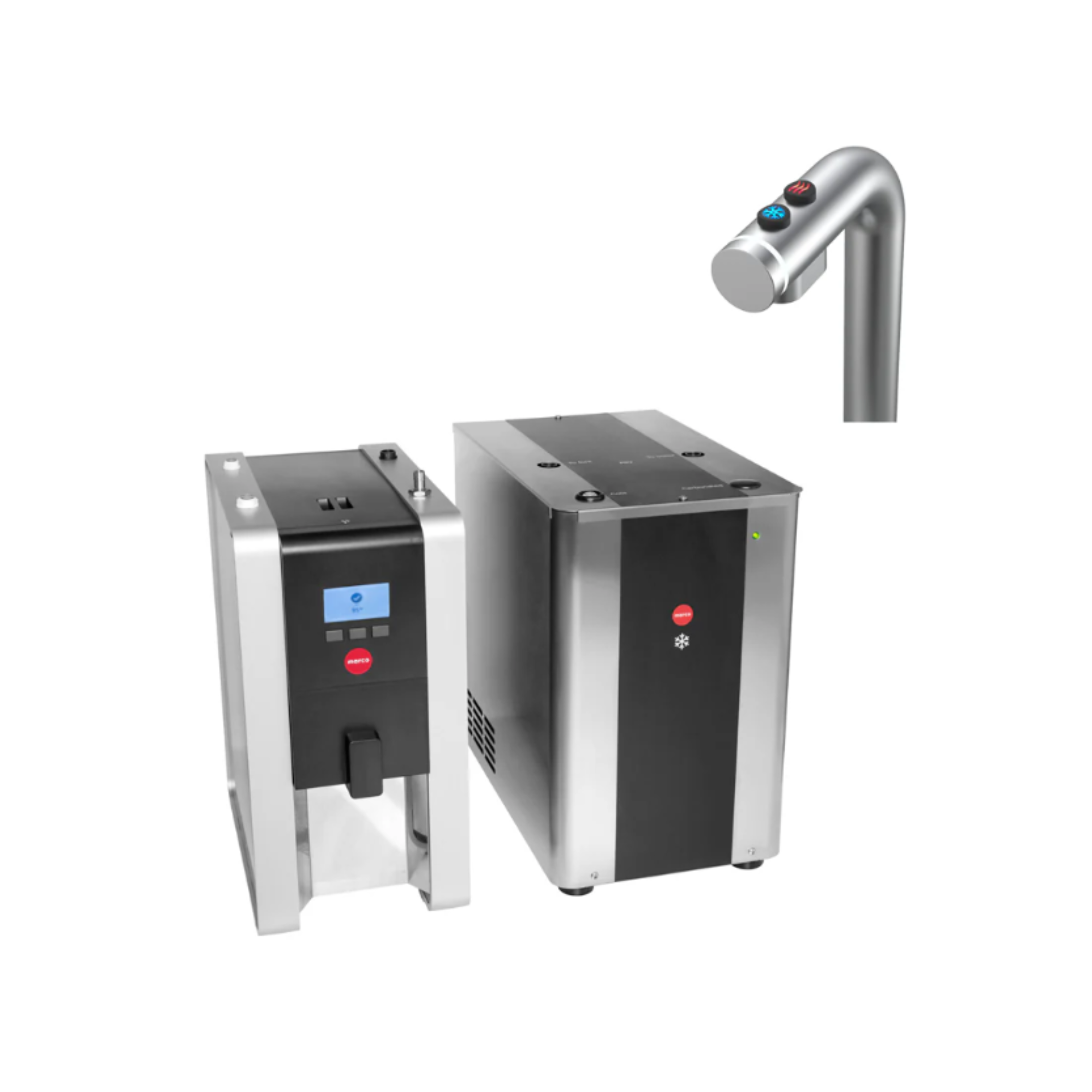

Marco FRIIA HC / HC Plus – Hot & Cold Water Dispenser

FRIIA HC and HC Plus are hot/cold under-counter water delivery systems. Designed with award-winning technology, the systems contain an under-counter boiler and chiller, along with a sleek, stylish countertop font. FRIIA HC and HC Plus are the perfect alternatives to POU water systems for offices, office kitchens, canteens, gyms, schools, colleges, and small coffee shops. Includes a drip tray.

FRIIA HC

First draw-off: 3 L
Cups per hour – hot (170 ml): 165
Cups per hour – cold/sparkling (170 ml): 235 (ΔT = 10°C)

Dimensions

• Font: D 30 x W 30 x H 292 mm (without drip tray; 247 mm tap to counter)
• Boiler: D 385 x W 210 x H 444
• Chiller: D 436 x W 259 x H 455

Weight

• Font: 740 g
• Boiler: 9.2 kg
• Chiller: 31 kg
• Chiller/carbonator: 35 kg

Power requirements

• Boiler: 2.8 kW
• Chiller: 180 W

Plumbing requirements

• Boiler: ¾" BSP
• Chiller: ¾" BSP

Chiller specs

• Cooling capacity: 35–40 L/hr
• Compressor power: 1/8 hp
• Cooling system: Aluminium block
• Refrigerant: R290

Packaging dimensions

• L 490 x W 300 x H 515 mm
• Boiler: 11 kg
• Chiller/carbonator: 31.5 kg
• Font: 2 kg
• Total weight: 44.5 kg

FRIIA HC PLUS

First draw-off: 8 L
Cups per hour – hot (170 ml): 165
Cups per hour – cold/sparkling (170 ml): 235 (ΔT = 10°C)

Dimensions

• Font: D 30 x W 30 x H 292 mm (without drip tray; 247 mm tap to counter)
• Boiler: D 385 x W 210 x H 610
• Chiller: D 436 x W 259 x H 455

Weight

• Font: 740 g
• Boiler: 9.2 kg
• Chiller: 31 kg
• Chiller/carbonator: 35 kg

Power requirements

• Boiler: 2.8 kW
• Chiller: 180 W

Plumbing requirements

• Boiler: ¾" BSP
• Chiller: ¾" BSP

Chiller specs

• Cooling capacity: 35–40 L/hr
• Compressor power: 1/8 hp
• Cooling system: Aluminium block
• Refrigerant: R290

Packaging dimensions

• L 490 x W 300 x H 515 mm
• Boiler: 14 kg
• Chiller/carbonator: 31.5 kg
• Font: 2 kg
• Total weight: 47.5 kg
